Blanking Tube Inserts

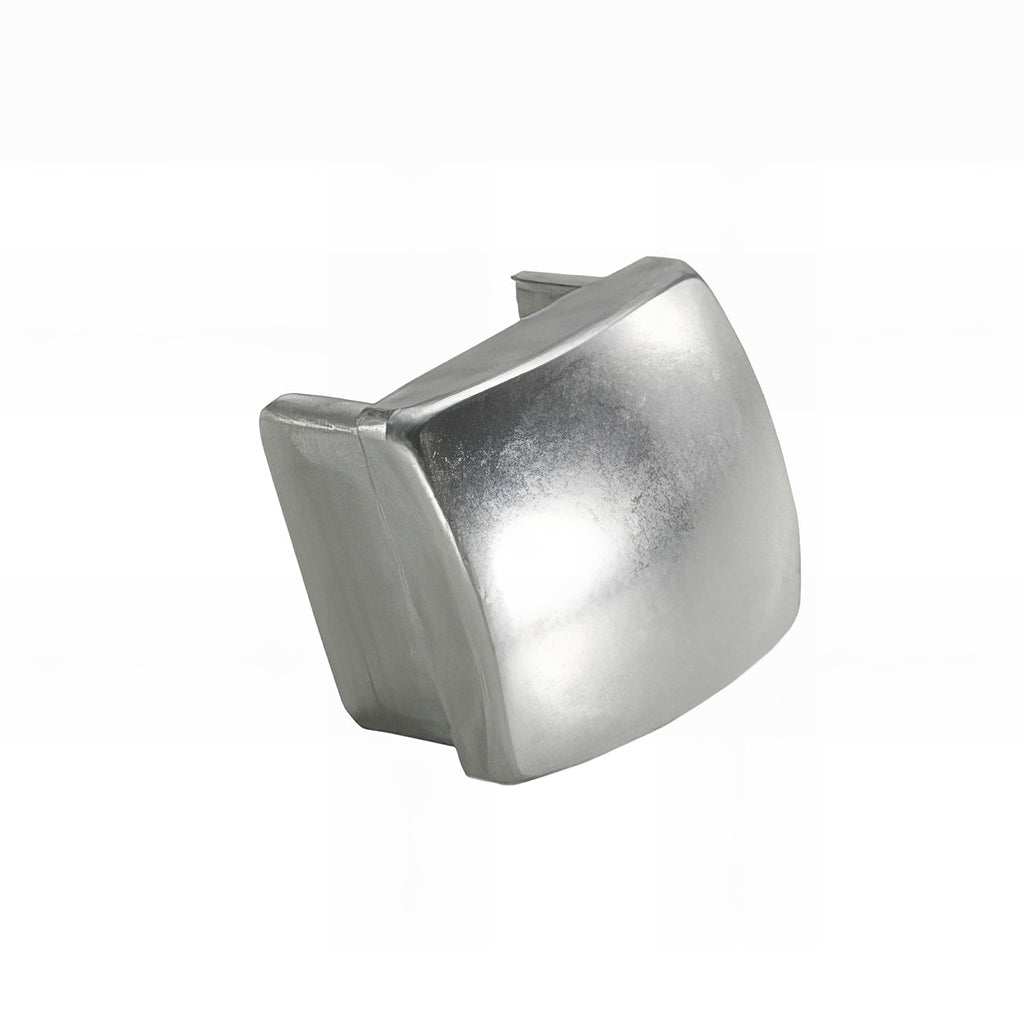

STEEL SQUARE IMPERIAL TUBE INSERT

Pressed steel insert for heavy duty applications. Available in self colour or bright zinc finish. Ideal for feet or closures.

Find the right option
  • Pressed steel square imperial tube insert for heavy duty feet and closures with bright zinc or self colour finish
  • Plastic square tube inserts for imperial sizes ½”–2” protecting tubing ends and providing a professional finish
  • Medium Duty Nylon Wheel white industrial caster with 100-380 kg load capacity for trolleys and carts
1 3

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Pressed steel insert for heavy duty applications.
Available in self colour or bright zinc finish.
Ideal for feet or closures.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

10 options
Part numberSize / technical detailOther specificationAction
BMQ190/16 3/4 x 3/4 / 16 / 8 | 18 | self colour —
BMQ190/16Z 3/4 x 3/4 / 16 / 8 | 18 | zinc plated —
BMQ190/18 3/4 x 3/4 / 18 / 8 | 19 | self colour —
BMQ190/18Z 3/4 x 3/4 / 18 / 8 | 19 | zinc plated —
BMQ222/16 7/8 X 7/8 / 16 / 8 | 18 | self colour —
BMQ222/16Z 7/8 X 7/8 / 16 / 8 | 18 | zinc plated —
BMQ254/16Z 1 x 1 / 16 / 11 | 13 | zinc plated —
BMQ254/16 1 x 1 / 16 / 11 | 13 | self colour —
BMQ254/18 1 x 1 / 18 / 10 | 14 | self colour —
BMQ254/18Z 1 x 1 / 18 / 10 | 14 | zinc plated —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

STEEL SQUARE IMPERIAL TUBE INSERT
BMQ190/16

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Tube OD (Inch) Gauge Head Thickness (mm) Shank Length (mm) Finish
BMQ190/16 3/4 x 3/4 16 8 18 self colour
BMQ190/16Z 3/4 x 3/4 16 8 18 zinc plated
BMQ190/18 3/4 x 3/4 18 8 19 self colour
BMQ190/18Z 3/4 x 3/4 18 8 19 zinc plated
BMQ222/16 7/8 X 7/8 16 8 18 self colour
BMQ222/16Z 7/8 X 7/8 16 8 18 zinc plated
BMQ254/16Z 1 x 1 16 11 13 zinc plated
BMQ254/16 1 x 1 16 11 13 self colour
BMQ254/18 1 x 1 18 10 14 self colour
BMQ254/18Z 1 x 1 18 10 14 zinc plated

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
CAN'T FIND THE RIGHT COMPONENT?

Challenge Indifit.

Send us a part number, drawing or specification and our team will help you find the right solution. More than a supplier — an extension of your team.

Talk to the team → Browse all products →
