TYPE D/E THREADED WOOD INSERT NUTS

Flange head on type D version prevents over-insertion and splitting of panel whilst Type E version can be inserted below the surface or curved edge panel. Part threaded tapered barrel for twist/screw in fitting.

Find the right option

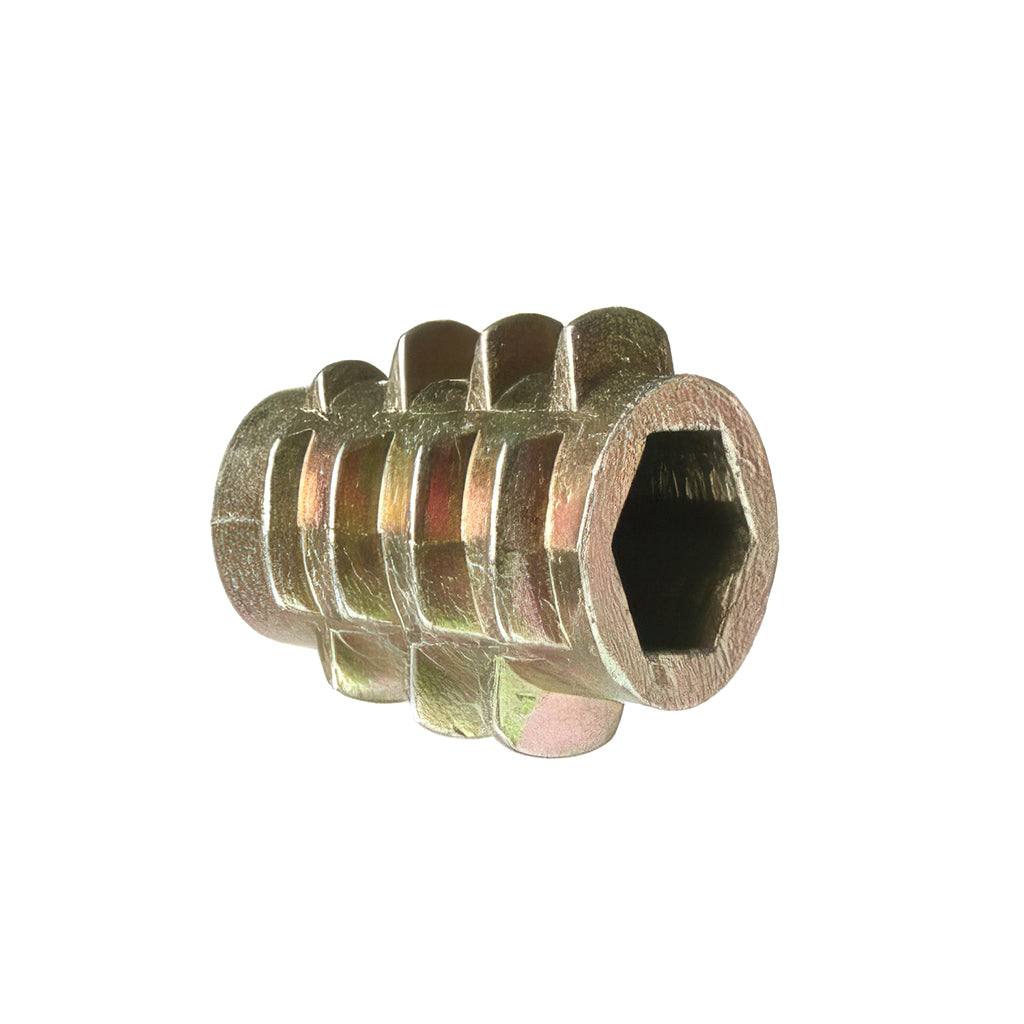

  • TYPE D/E threaded wood insert nuts with flange head and tapered barrel for secure wood fastening
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Flange head on type D version prevents over-insertion and splitting of panel whilst Type E version can be inserted below the surface or curved edge panel.
Part threaded tapered barrel for twist/screw in fitting.

Quick and easy way to create a female thread in wood or wood-type material.

Please note: the size range shown in the listed table is a selection of the most popular fasteners we sell. However, the size range we can supply is too vast to be listed here, so if the size or specification you require is not shown, please call the sales office and we will endeavour to supply to your requirement.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

20 options
Part numberSize / technical detailOther specificationAction
ANIDM04010ZC D / Steel / 3.1 | M4 | Zinc / Colour | 5.6 to 6 | 10 | 8.5 | 8 | 5.5 | 4 —
ANIDM05010ZC D / Steel / 2.9 | M4 | Zinc / Colour | 7.5 to 7.9 | 10 | 11.5 | 10.6 | 7.1 | 5 —
ANIDM05013ZC D / Steel / 3.4 | M5 | Zinc / Colour | 7.5 to 7.9 | 13 | 11.5 | 10.6 | 6.6 | 5 —
ANIDM05020ZC D / Steel / 3.8 | M5 | Zinc / Colour | 7.9 to 8.7 | 20 | 11.5 | 10.8 | 7 | 5 —
ANIDM06010ZC D / Steel / 3.3 | M6 | Zinc / Colour | 8.7 to 9.1 | 10 | 12.5 | 11.6 | 8 | 6 —
ANIDM06013ZC D / Steel / 3.4 | M6 | Zinc / Colour | 8.7 to 9.1 | 13 | 12.5 | 11.7 | 7.8 | 6 —
ANIDM06016ZC D / Steel / 3.6 | M6 | Zinc / Colour | 8.7 to 9.1 | 16 | 12.5 | 11.7 | 7.6 | 6 —
ANIDM06020ZC D / Steel / 3.4 | M6 | Zinc / Colour | 8.7 to 9.1 | 20 | 12.5 | 12 | 7.5 | 6 —
ANIDM06025ZC D / Steel / 4 | M6 | Zinc / Colour | 8.7 to 9.5 | 25 | 12.5 | 11.9 | 8 | 6 —
ANIDM08013ZC D / Steel / 4.4 | M8 | Zinc / Colour | 11.1 to 11.5 | 13 | 14.5 | 13.5 | 9.6 | 8 —
ANIDM08020ZC D / Steel / 5.5 | M8 | Zinc / Colour | 11.1 to 11.5 | 20 | 14.5 | 13.5 | 9.6 | 8 —
ANIDM08025ZC D / Steel / 4.6 | M8 | Zinc / Colour | 11.1 to 12.7 | 25 | 14.5 | 13.8 | 9.5 | 8 —
ANIDM10013ZC D / Steel / 4.4 | M10 | Zinc / Colour | 12.7 to 13.1 | 13 | 14.5 | 15.1 | 11.7 | 10 —
ANIDM10025ZC D / Steel / 4.6 | M10 | Zinc / Colour | 12.7 to 13.1 | 25 | 14.5 | 15.1 | 11.7 | 10 —
ANIEM0410 E / Steel / 3.4 | M4 | Zinc / Colour | 5.6 to 6 | 10 | 7.3 | 5.5 | 5.5 | 4 —
ANIEM0513 E / Steel / 3.4 | M5 | Zinc / Colour | 7.5 to 7.9 | 13 | 10.9 | 6.7 | 6.7 | 5 —
ANIEM0613 E / Steel / 3.4 | M6 | Zinc / Colour | 8.7 to 9.1 | 13 | 11.5 | 7.5 | 7.5 | 6 —
ANIEM0620 E / Steel / 3.6 | M6 | Zinc / Colour | 8.7 to 9.1 | 20 | 11.7 | 7.7 | 7.7 | 6 —
ANIEM0813 E / Steel / 3.4 | M8 | Zinc / Colour | 11.1 to 11.5 | 13 | 14.2 | 9.5 | 9.5 | 8 —
ANIEM0820 E / Steel / 4.2 | M8 | Zinc / Colour | 11.1 to 11.5 | 20 | 14.3 | 9.5 | 9.5 | 8 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

TYPE D/E THREADED WOOD INSERT NUTS
ANIDM04010ZC

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Material L1 Thread Size Finish Panel Hole Size Length (L) Head dia (d1) Max flute dia (d2) Min flute dia (d3) Wrench key size (h)
ANIDM04010ZC D Steel 3.1 M4 Zinc / Colour 5.6 to 6 10 8.5 8 5.5 4
ANIDM05010ZC D Steel 2.9 M4 Zinc / Colour 7.5 to 7.9 10 11.5 10.6 7.1 5
ANIDM05013ZC D Steel 3.4 M5 Zinc / Colour 7.5 to 7.9 13 11.5 10.6 6.6 5
ANIDM05020ZC D Steel 3.8 M5 Zinc / Colour 7.9 to 8.7 20 11.5 10.8 7 5
ANIDM06010ZC D Steel 3.3 M6 Zinc / Colour 8.7 to 9.1 10 12.5 11.6 8 6
ANIDM06013ZC D Steel 3.4 M6 Zinc / Colour 8.7 to 9.1 13 12.5 11.7 7.8 6
ANIDM06016ZC D Steel 3.6 M6 Zinc / Colour 8.7 to 9.1 16 12.5 11.7 7.6 6
ANIDM06020ZC D Steel 3.4 M6 Zinc / Colour 8.7 to 9.1 20 12.5 12 7.5 6
ANIDM06025ZC D Steel 4 M6 Zinc / Colour 8.7 to 9.5 25 12.5 11.9 8 6
ANIDM08013ZC D Steel 4.4 M8 Zinc / Colour 11.1 to 11.5 13 14.5 13.5 9.6 8
ANIDM08020ZC D Steel 5.5 M8 Zinc / Colour 11.1 to 11.5 20 14.5 13.5 9.6 8
ANIDM08025ZC D Steel 4.6 M8 Zinc / Colour 11.1 to 12.7 25 14.5 13.8 9.5 8
ANIDM10013ZC D Steel 4.4 M10 Zinc / Colour 12.7 to 13.1 13 14.5 15.1 11.7 10
ANIDM10025ZC D Steel 4.6 M10 Zinc / Colour 12.7 to 13.1 25 14.5 15.1 11.7 10
ANIEM0410 E Steel 3.4 M4 Zinc / Colour 5.6 to 6 10 7.3 5.5 5.5 4
ANIEM0513 E Steel 3.4 M5 Zinc / Colour 7.5 to 7.9 13 10.9 6.7 6.7 5
ANIEM0613 E Steel 3.4 M6 Zinc / Colour 8.7 to 9.1 13 11.5 7.5 7.5 6
ANIEM0620 E Steel 3.6 M6 Zinc / Colour 8.7 to 9.1 20 11.7 7.7 7.7 6
ANIEM0813 E Steel 3.4 M8 Zinc / Colour 11.1 to 11.5 13 14.2 9.5 9.5 8
ANIEM0820 E Steel 4.2 M8 Zinc / Colour 11.1 to 11.5 20 14.3 9.5 9.5 8

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
CAN'T FIND THE RIGHT COMPONENT?

Challenge Indifit.

Send us a part number, drawing or specification and our team will help you find the right solution. More than a supplier — an extension of your team.
