Pivoting Square 4 Way Tube Connectors

Name: Pivoting Square 4 Way Tube Connectors
Brand: Indifit
SKU: TCR4/250/15/300
Availability: InStock

Pivoting Square 4 Way Tube Connectors

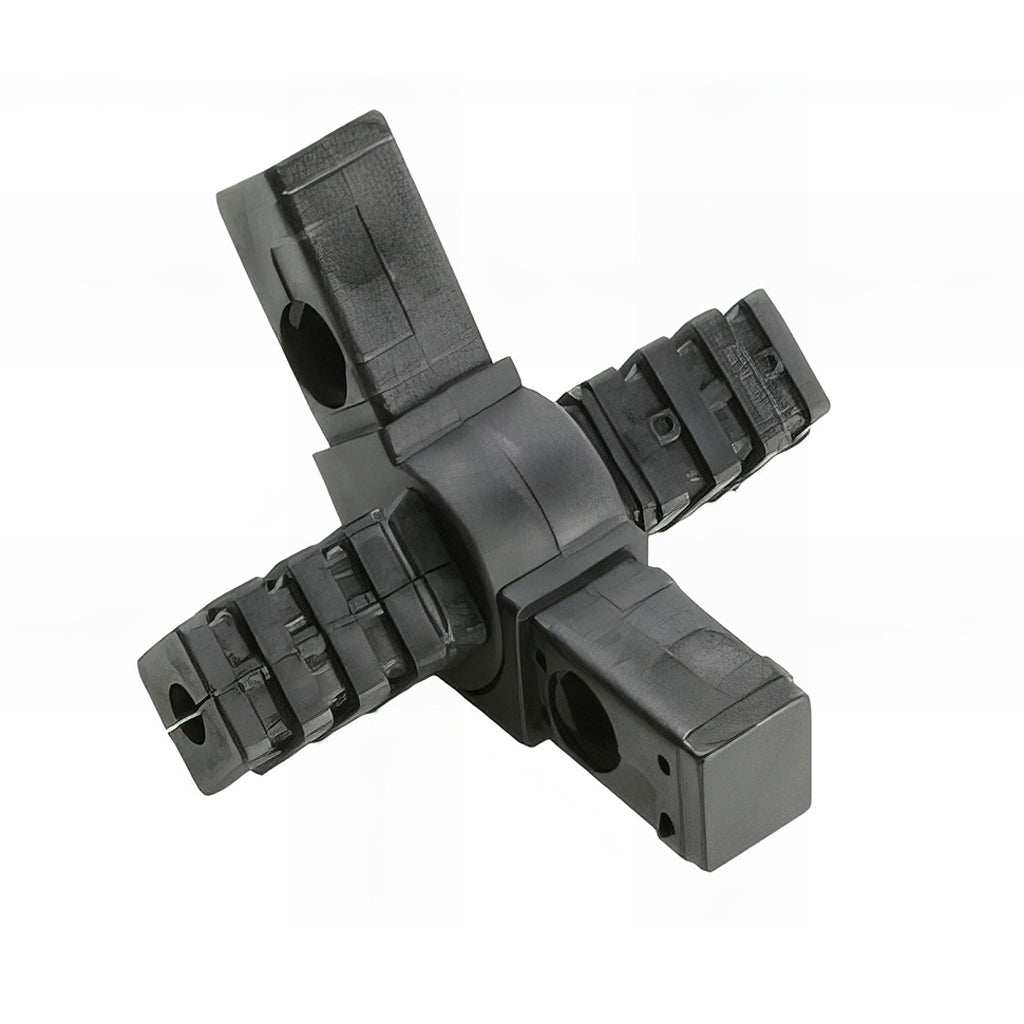

Create flexible and dynamic structural connections with our Plastic Pivoting Hinged Square 4-Way Tube Connectors (TCR4) — designed for four-direction pivoting junctions in square-tube frameworks. These advanced connectors allow adjustable angle positioning on multiple axes, making them ideal for bespoke mechanical assemblies, adjustable supports, articulated frames, and structures that require non-fixed geometry or movement.

Key Features & Benefits

Adjustable Pivoting Design – Each connector is engineered with a hinged pivot mechanism that allows connected square tubes to articulate across a chosen angle range, giving greater flexibility for non-standard frame configurations.

Multi-Direction Tube Junction – Designed to connect four square tubes at a central pivot point, perfect for multi-axis support frames, articulated linkages, or custom structural systems where movement and adjustability are needed.

Durable Nylon Construction – Manufactured from robust black nylon for excellent wear resistance and long service life in workshop or industrial environments.

Range of Pivot Angles – Available in several tube size and pivot angle variants (e.g., 60–300°, 45–195°, 0–190°, 45–200°) with some options offering 15° increment locking for fine-tuned positioning.

Tool-Free Assembly – Push-fit and pivoting design makes installation fast and straightforward without welding, screws, or specialised tools — helping save time and labour.

Wide Application Use Cases – Ideal for adjustable welding jigs, angled brackets, multi-direction supports, display rigs, prototype assemblies, mobile frameworks, and bespoke engineering builds.

Why Choose These Hinged Connectors?

Our Plastic Pivoting Hinged Square 4-Way Tube Connectors offer flexible angle adjustment and secure multi-direction tube joining in one durable unit — perfect when fixed connectors won’t meet the design needs of your project. Whether you’re constructing complex supports, adjustable fixtures, or creative modular systems, these connectors enable precise, repeatable articulation and robust performance without welding or heavy fabrication.

How to Request a Quote

Find the size and product code you need from table below.
Enter product code and quantities required
Click Add To Quote
Repeat on any other product pages as needed.
Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details

SKU	Tube Size (mm)	Pivot Range	15 Deg increments
TCR4/250/15/300	25 x 25 x 1.5	60-300 DEG	No
TCR4/250/15/195	25 x 25 x 1.5	45-195 DEG	Yes
TCR4/250/15/190	25 x 25 x 1.5	0-190 DEG	No
TCR4/300/20/200	30 x 30 x 2.0	45-200 DEG	No
