What are the main features of JOINT CONNECTOR BOLTS?

JOINT CONNECTOR BOLTS feature a wide low profile head with a socket key drive, designed to easily mate with joint connector nuts. They are available in standard zinc plating, with black and bronze finishes offered on order.

Are there different finishes available for JOINT CONNECTOR BOLTS?

Yes, the standard finish is zinc plated, and black and bronze finishes are also available upon order, although minimum quantities may apply.

Can I get JOINT CONNECTOR BOLTS in custom sizes not listed in the product table?

Absolutely. The size range listed is just a selection of our most popular fasteners. If you need a specific size or specification not shown, contact our sales office and we will do our best to supply your requirements.

What should I consider when choosing the right JOINT CONNECTOR BOLT?

Consider the size, finish, and compatibility with your joint connector nut range. If you're unsure about the specifications, our sales team can assist you in selecting the right fastener for your needs.

How do I ensure proper installation of JOINT CONNECTOR BOLTS?

Use the appropriate socket key drive to securely fasten the bolt and ensure it properly mates with the joint connector nut. For specific installation guidance, refer to your project requirements or contact our technical support.

1 1

JOINT CONNECTOR BOLTS

Name: JOINT CONNECTOR BOLTS
Brand: Indifit
SKU: AJCBM06012BR
Availability: InStock

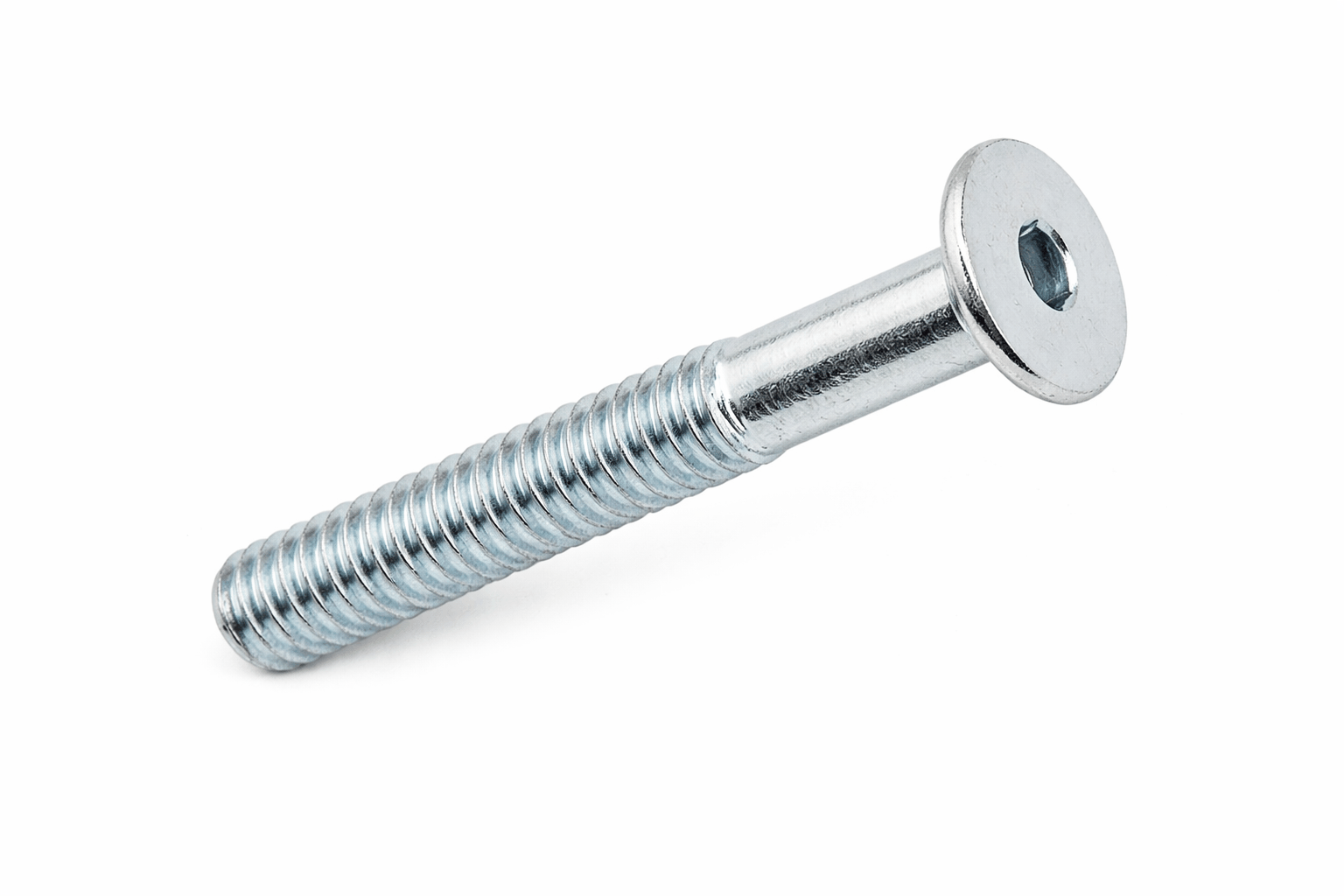

Wide low profile head with socket key drive that can mate with joint connector nut range, if needed.

Zinc plated is standard stock range whilst black and bronze finishes are bought to order (min qtys may apply)

Please note: the size range shown in the listed table is a selection of the most popular fasteners we sell. However, the size range we can supply is too vast to be listed here, so if the size or specification you require is not shown, please call the sales office and we will endeavour to supply to your requirement.

How to Request a Quote

Find the size and product code you need from table below.
Enter product code and quantities required
Click Add To Quote
Repeat on any other product pages as needed.
Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details

SKU	Material	Thread Size	Finish	Length	Wrench key size
AJCBM06012BR	Steel	M6	Bronze	12	4
AJCBM06012Z	Steel	M6	Zinc	12	4
AJCBM06015BR	Steel	M6	Bronze	15	4
AJCBM06016CB	Steel	M6	Black	16	4
AJCBM06016Z	Steel	M6	Zinc	16	4
AJCBM06020BR	Steel	M6	Bronze	20	4
AJCBM06020CB	Steel	M6	Black	20	4
AJCBM06020Z	Steel	M6	Zinc	20	4
AJCBM06025BR	Steel	M6	Bronze	25	4
AJCBM06025CB	Steel	M6	Black	25	4
AJCBM06025Z	Steel	M6	Zinc	25	4
AJCBM06030BR	Steel	M6	Bronze	30	4
AJCBM06030CB	Steel	M6	Black	30	4
AJCBM06030Z	Steel	M6	Zinc	30	4
AJCBM06035BR	Steel	M6	Bronze	35	4
AJCBM06035CB	Steel	M6	Black	35	4
AJCBM06035Z	Steel	M6	Zinc	35	4
AJCBM06040BR	Steel	M6	Bronze	40	4
AJCBM06040CB	Steel	M6	Black	40	4
AJCBM06040Z	Steel	M6	Zinc	40	4
AJCBM06045CB	Steel	M6	Black	45	4
AJCBM06045Z	Steel	M6	Zinc	45	4
AJCBM06050BR	Steel	M6	Bronze	50	4
AJCBM06050Z	Steel	M6	Zinc	50	4
AJCBM06060BR	Steel	M6	Bronze	60	4
AJCBM06060CB	Steel	M6	Black	60	4
AJCBM06060Z	Steel	M6	Zinc	60	4
AJCBM06070BR	Steel	M6	Bronze	70	4
AJCBM06070Z	Steel	M6	Zinc	70	4
AJCBM06080CB	Steel	M6	Black	80	4
AJCBM06080Z	Steel	M6	Zinc	80	4
AJCBM06090BR	Steel	M6	Bronze	90	4
AJCBM06090Z	Steel	M6	Zinc	90	4
AJCBM06100Z	Steel	M6	Zinc	100	4
AJCBM06110Z	Steel	M6	Zinc	110	4
AJCBM06120Z	Steel	M6	Zinc	120	4
