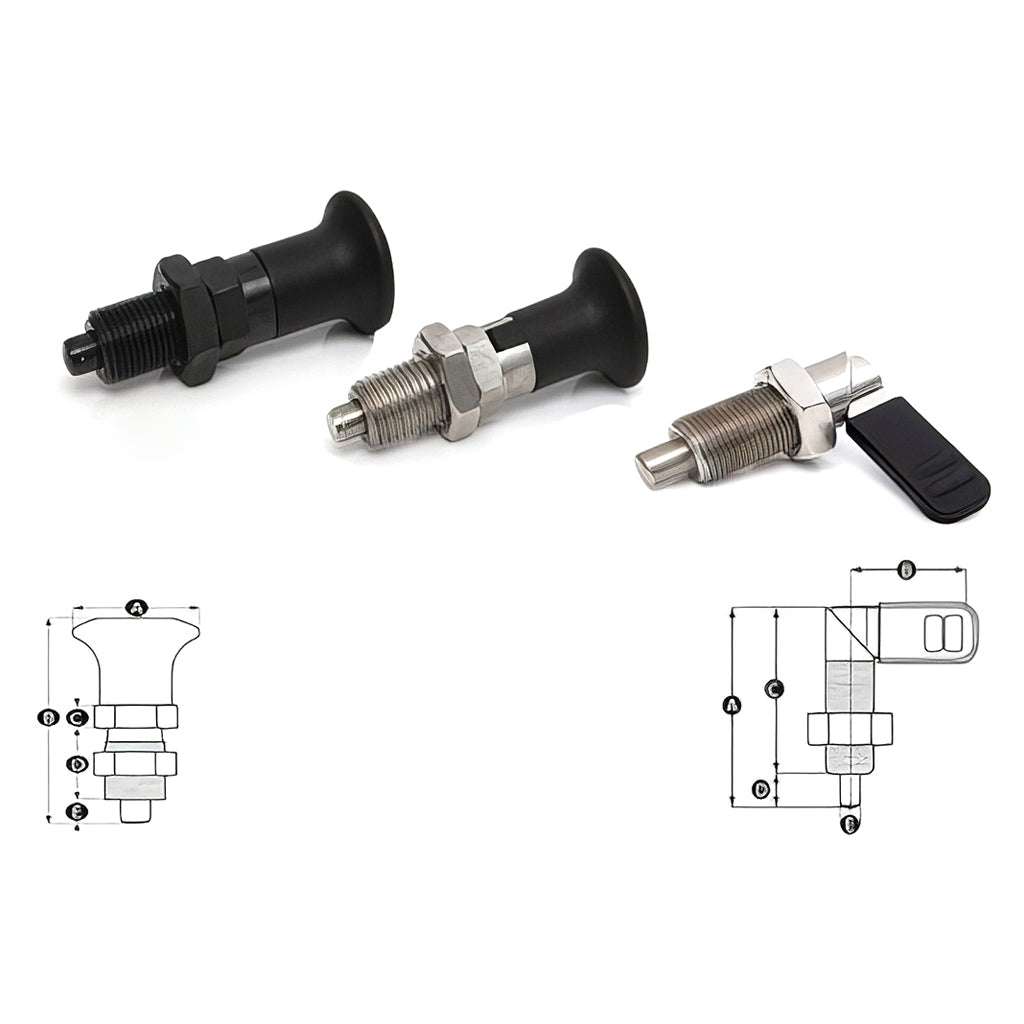

• Thread mounted index plunger front panel with push-pull and swing lever action designs
1 1

THREAD MOUNTED INDEX PLUNGER

THREAD MOUNTED INDEX PLUNGER

2 designs to choose from in choice of materials.
With or without “hold open” rest position.

Image 1 is push-pull action, Image 2 is swing lever action with hold open position.

All of this product range are front panel thread mounted.

How to Request a Quote
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!
View full details
SKU Knob Material A B C D E Thread Size Body material Rest position Knob finish Body finish Plunger dia Image
HPL2/11817Z Nylon 21 51 5 17 5 M10 x 1.0 Steel Yes Black Zinc 5 2
HPL2/11818V Nylon 21 51 5 17 5 M10 x 1.0 Stainless Yes Black Stainless 5 2
HPL2/11821U Nylon 25 61 6 20 6 M12 x 1.5 Steel Yes Black Zinc 6 2
HPL2/11822Q Nylon 25 61 6 20 6 M12 x 1.5 Stainless Yes Black Stainless 6 2
HPL2/11825P Nylon 31 76 8 26 7 M16 x 1.5 Steel Yes Black Zinc 8 2
HPL2/11826W Nylon 31 76 8 26 7 M16 x 1.5 Stainless Yes Black Stainless 8 2
HPL3/11831Y Nylon 25 45 5 10 6 M12 x 1.5 Steel No Black Black 6 1
HPL3/11832U Nylon 25 45 5 10 6 M12 x 1.5 Steel Yes Black Black 6 1
HPL3/11833Q Nylon 31 54 6 12 8 M16 x 1.5 Steel No Black Black 8 1
HPL3/11834X Nylon 31 54 6 12 8 M16 x 1.5 Steel Yes Black Black 8 1
HPL3/12542S Nylon 21 45 5 17 5 M10 x 1.0 Steel No Black Black 5 1
HPL3/12672P Nylon 21 51 5 17 5 M10 x 1.0 Steel No Black Black 5 1
HPL3/12673W Nylon 25 61 6 20 6 M12 x 1.5 Steel No Black Black 6 1
HPL3/12674S Nylon 31 76 8 26 7 M16 x 1.5 Steel No Black Black 8 1
HPL4/11786R Steel 69 37 36 12 10 M20 x 1.5 Steel Yes Black Black 10 3
HPL4/11787Y Steel 69 37 36 12 12 M20 x 1.5 Steel Yes Black Black 12 3
HPL4/11788U Steel 69 37 36 12 8 M20 x 1.5 Steel Yes Black Black 8 3
HPL4/11794S Stainless 69 52 36 12 8 M20 x 1.5 Stainless Yes Stainless + black cap Stainless 8 3
HPL4/11795Z Stainless 69 52 36 12 10 M20 x 1.5 Stainless Yes Stainless + black cap Stainless 10 3
HPL4/11796V Stainless 69 52 36 12 12 M20 x 1.5 Stainless Yes Stainless + black cap Stainless 12 3
HPL4/15714R Steel 47 32 39 8 8 M12 x 1.5 Steel Yes Black Black 8 3

Why shop with us?

  • Best priced trade discounts

    Indifit is a leading supplier of industrial components with a reputation for top quality at competitive, affordable prices for your organisation. For pricing and availability of specific items, feel free to browse our online catalogue and reach out to us if you’d like a quotation for a component.

    Create a trade account

  • Huge range of engineering components

    Finding the right industrial component for your specific application can be a frustrating experience, but it doesn’t have to be. Our guarantee to you is that you’ll always be received by friendly, helpful, and efficient experts. Take advantage of our product and industry expertise to find exactly what you’re looking for.

    Browse our stock

  • Fast next-day delivery

    We offer fast next-day delivery on all in-stock products from our warehouse in the UK. We never charge for minimum orders nor do we have minimum order quantities, so whether it’s a packet of fasteners or bulk quantities you can depend on our speedy next-day delivery to your address.

    Our delivery options

Related Products

  • Decades of experience

  • Huge range of engineering finishing components

  • Best priced trade discounts

  • Fast next day delivery

Frequently Asked Questions

What are the design options available for the thread mounted index plunger?
The thread mounted index plunger comes in two design options: a push-pull action and a swing lever action with a hold open position, allowing you to choose based on your specific application.
Can I select the material for the thread mounted index plunger?
Yes, the product is available in a choice of materials to suit different environments and durability requirements, ensuring optimal performance and longevity.
What does the 'hold open' feature on the swing lever design do?
The 'hold open' feature on the swing lever design allows the plunger to stay in an open position until manually released, which is useful for maintenance or ease of access.
Is this product suitable for front panel mounting?
Absolutely, all models in this range are designed for front panel thread mounting, providing secure installation and easy access.
How does the thread mounted index plunger enhance equipment operation?
This index plunger provides precise positional indexing for machinery and panels, improving alignment, safety, and operational efficiency in various industrial and electronic applications.
