PLATE MOUNTED INDEX PLUNGER

PLATE MOUNTED INDEX PLUNGER

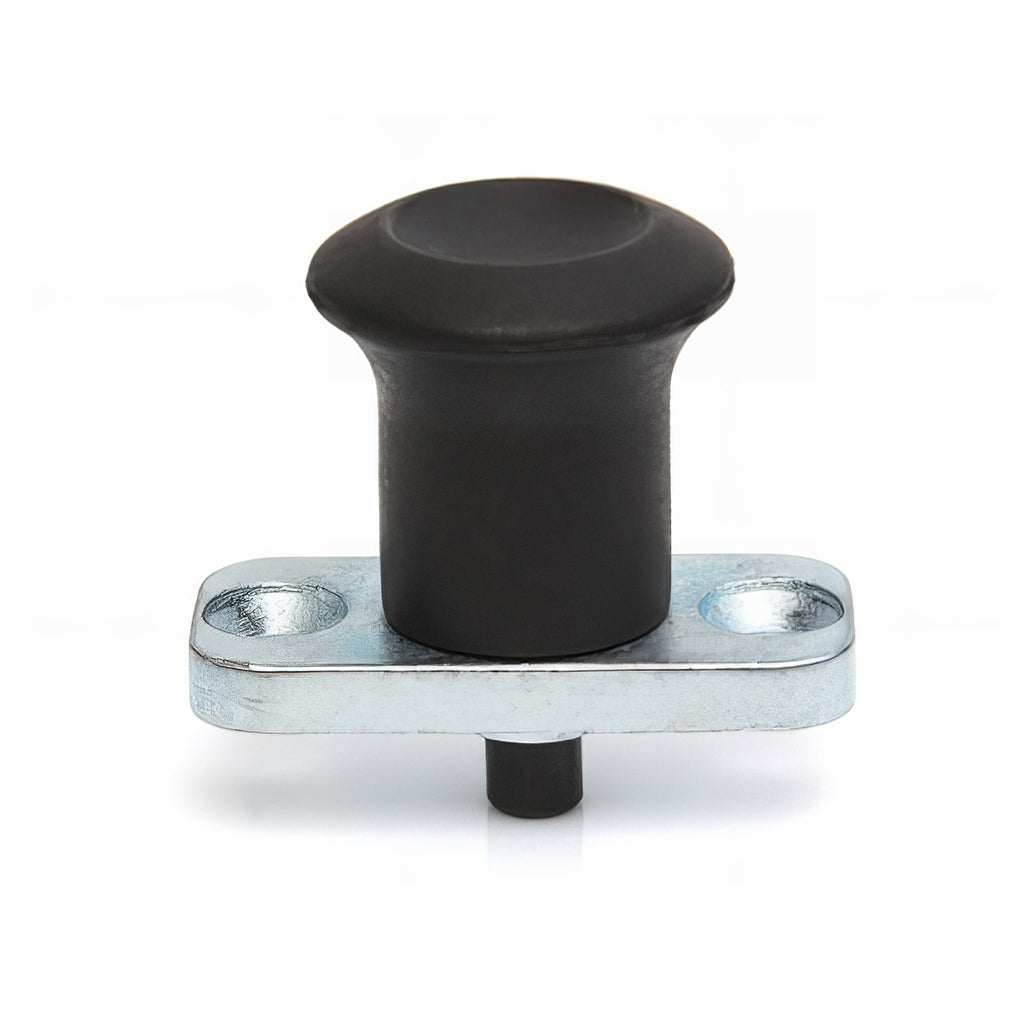

spring loaded index plunger with plastic knob and zinc plated steel flange plate. The flat fixing plate with countersunk holes is particularly suited to mounting on a thin, flat surface such as a panel or enclosure.

Some variations include an integral 90° rest position (see table below). The rest position is engaged by rotating the head by 90°, leaving the pin in a retracted position.

These plungers are commonly used for locating, positioning, indexing and securing and allow for rapid adjustment on a variety of platforms, fixtures and tables.

How to Request a Quote
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!
View full details
SKU Knob Material A B C D E F G Body material Rest position Knob finish Body finish Plunger dia
HPL1/11819R Thermoplastic 25 37 40 30 18 4.5 6 Steel No Black Zinc 6
HPL1/11820Y Thermoplastic 25 37 40 30 18 4.5 6 Steel Yes Black Zinc 6
HPL1/11823X Thermoplastic 31 44 46 34 20 5.5 8 Steel No Black Zinc 8
HPL1/11824T Thermoplastic 31 44 46 34 20 5.5 8 Steel Yes Black Zinc 8
