What is a CUP SQUARE HEX COACH BOLT and what are its main uses?

A CUP SQUARE HEX COACH BOLT is a high tensile grade 8.8 partially threaded bolt designed for heavy-duty fastening applications. It is commonly used in construction, engineering, and structural projects where strong, reliable connections are required.

What are the benefits of choosing a zinc-coated CUP SQUARE HEX COACH BOLT?

The zinc coating provides excellent corrosion resistance, making the bolt suitable for outdoor and harsh environments. This durability ensures a longer lifespan and maintains the bolt's strength and integrity over time.

Can I get a custom size or specification of the CUP SQUARE HEX COACH BOLT if it’s not listed?

Yes, if the size or specification you need is not shown in the listed table, you can contact our sales office. We offer a wide range of fasteners and will endeavour to supply the exact size or specification you require.

How should I install a CUP SQUARE HEX COACH BOLT for optimal performance?

To ensure optimal performance, select the appropriate size and torque settings according to your application. It is advisable to use compatible nuts and follow proper assembly procedures for secure and safe fastening.

Are there different sizes available for the CUP SQUARE HEX COACH BOLT?

Yes, the CUP SQUARE HEX COACH BOLT is available in various sizes. The listed sizes are the most popular, but custom sizes can be supplied upon request by contacting our sales team.

1 1

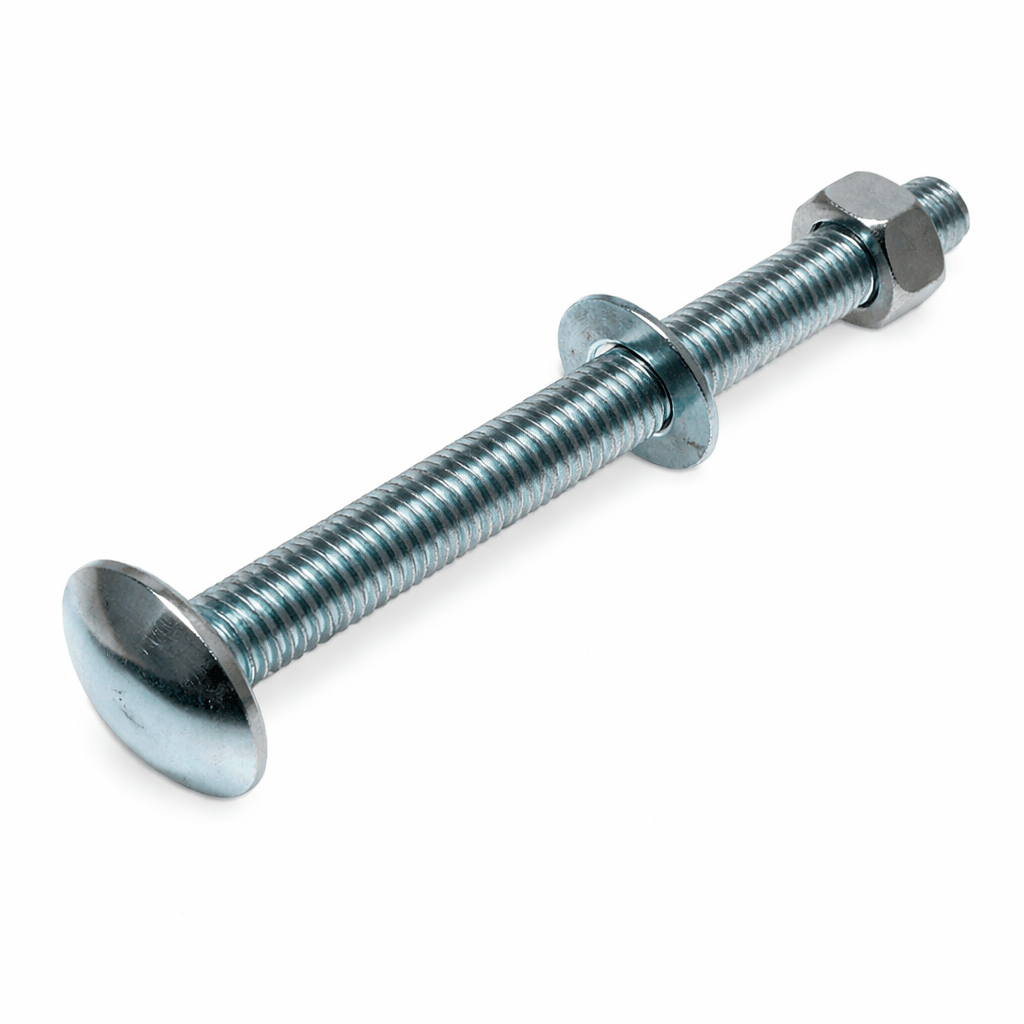

CUP SQUARE HEX COACH BOLT AND NUT ZINC

High tensile grade 8.8 partially threaded bolt

Please note: the size range shown in the listed table is a selection of the most popular fasteners we sell. However, the size range we can supply is too vast to be listed here, so if the size or specification you require is not shown, please call the sales office and we will endeavour to supply to your requirement.

How to Request a Quote

Find the size and product code you need from table below.
Enter product code and quantities required
Click Add To Quote
Repeat on any other product pages as needed.
Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details

SKU	Material	Finish	Pack Qty	Size	Head dia	Head height
AHCBM06025Z	Steel	Zinc	200	M6 x 25mm	16	3.5
AHCBM06030Z	Steel	Zinc	200	M6 x 30mm	16	3.5
AHCBM06040Z	Steel	Zinc	200	M6 x 40mm	16	3.5
AHCBM06050Z	Steel	Zinc	200	M6 x 50mm	16	3.5
AHCBM06060Z	Steel	Zinc	200	M6 x 60mm	16	3.5
AHCBM06075Z	Steel	Zinc	200	M6 x 75mm	16	3.5
AHCBM06100Z	Steel	Zinc	200	M6 x 100mm	16	3.5
AHCBM08040Z	Steel	Zinc	200	M8 x 40mm	20	4.5
AHCBM08050Z	Steel	Zinc	200	M8 x 50mm	20	4.5
AHCBM08075Z	Steel	Zinc	200	M8 x 75mm	20	4.5
AHCBM08100Z	Steel	Zinc	100	M8 x 100mm	20	4.5
AHCBM08130Z	Steel	Zinc	100	M8 x 130mm	20	4.5
AHCBM08150Z	Steel	Zinc	50	M8 x 150mm	20	4.5
AHCBM10030Z	Steel	Zinc	200	M10 x 30mm	24	5
AHCBM10040Z	Steel	Zinc	100	M10 x 40mm	24	5
AHCBM10050Z	Steel	Zinc	100	M10 x 50mm	24	5
AHCBM10075Z	Steel	Zinc	100	M10 x 75mm	24	5
AHCBM10100Z	Steel	Zinc	100	M10 x 100mm	24	5
AHCBM10130Z	Steel	Zinc	50	M10 x 130mm	24	5
AHCBM10150Z	Steel	Zinc	50	M10 x 150mm	24	5
AHCBM10180Z	Steel	Zinc	50	M10 x 180mm	24	5
AHCBM12075Z	Steel	Zinc	50	M12 x 75mm	30	6
AHCBM12100Z	Steel	Zinc	50	M12 x 100mm	30	6
AHCBM12130Z	Steel	Zinc	50	M12 x 130mm	30	6
AHCBM12150Z	Steel	Zinc	50	M12 x 150mm	30	6
AHCBM12180Z	Steel	Zinc	50	M12 x 180mm	30	6
